The Hidden Maintenance Costs of a Helium Mass Spectrometer Leak Detector and How to Avoid Them

When investing in industrial testing equipment, the initial purchase price is often just the tip of the iceberg. For facilities relying on precise leak detection, understanding the total cost of ownership is paramount. A helium mass spectrometer leak detector is a highly sophisticated piece of machinery, essential for ensuring product integrity in industries ranging from aerospace to medical device manufacturing. However, the ongoing expenses required to keep these sensitive instruments operating at peak performance can quickly add up. This article explores the often-overlooked maintenance costs associated with these systems and provides actionable strategies to minimize expenses while maintaining rigorous quality standards, guiding you toward a more cost-effective helium leak detector operation.

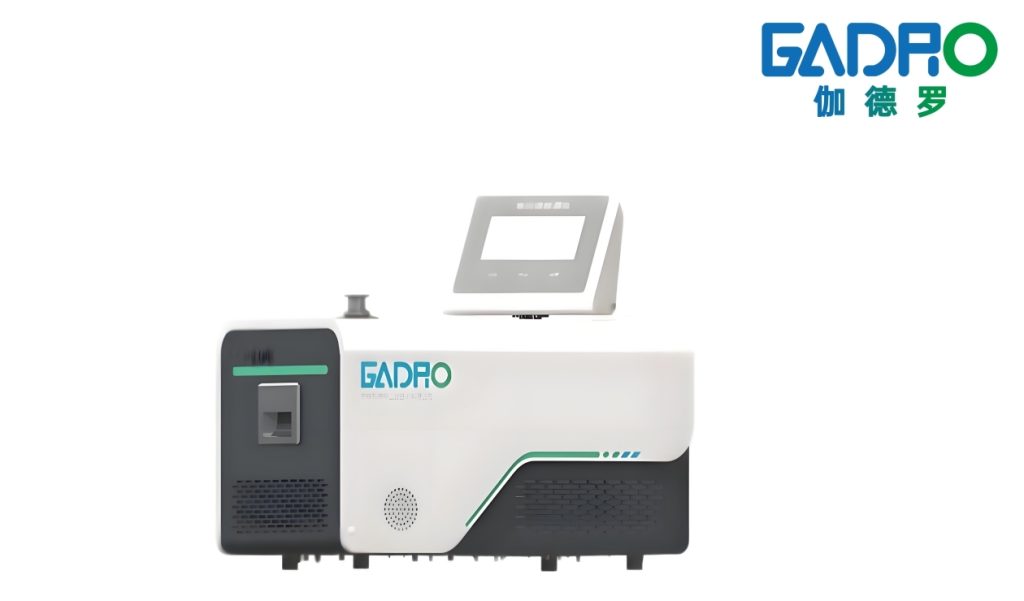

Introduction to Helium Mass Spectrometry Leak Detection

Helium mass spectrometry is widely regarded as the gold standard for leak detection due to its unparalleled sensitivity. The process involves introducing helium—a small, inert gas that easily penetrates minute flaws—into or around a test piece. The detector then uses a mass spectrometer tuned specifically to the mass of helium to detect its presence, signaling a leak.

While the technology is incredibly effective, it relies on complex internal components, including high-vacuum pumps, sensitive electronics, and specialized filaments. The demanding nature of these components means that regular and meticulous helium mass spectrometer leak detector maintenance is not optional; it is a fundamental requirement for accurate and reliable operation.

The Reality of Hidden Maintenance Costs

The true cost of operating a helium mass spectrometer extends far beyond routine service checks. Let’s delve into the specific areas where hidden costs frequently arise.

1. High-Vacuum Pump Maintenance

The heart of any mass spectrometer leak detector is its vacuum system. A high vacuum is necessary for the mass spectrometer to function, as gas molecules must travel from the ionization source to the detector without colliding with other molecules.

• Rotary Vane Pumps (Roughing Pumps): These pumps require regular oil changes. The frequency depends on the application; testing dirty or wet parts contaminates the oil quickly, necessitating more frequent changes. High-quality vacuum pump oil is expensive, and the labor required to change it, along with the downtime, adds to the cost.
• Turbomolecular Pumps (High Vacuum): While these pumps are generally more robust and don’t require oil changes in the same way, their bearings wear out over time. Replacing a turbomolecular pump or its bearings is a significant expense, often running into thousands of dollars.
• Preventative Strategy: Implementing a strict schedule for checking and changing roughing pump oil based on hours of operation rather than just the calendar can extend pump life. For turbomolecular pumps, ensuring the system isn’t subjected to sudden pressure spikes (venting to atmosphere too quickly) will protect the delicate rotor blades and bearings.

2. Filament Replacement

The mass spectrometer uses a filament (typically iridium or tungsten) to emit electrons that ionize the helium gas. These filaments burn out over time, much like an incandescent light bulb.

• The Cost Factor: The cost of the filament itself is moderate, but the process of replacing it often requires venting the system to the atmosphere, replacing the filament, pumping the system back down to a high vacuum, and then performing a rigorous calibration. This results in significant downtime. Furthermore, if a filament burns out during a critical testing run, the cost of delayed production can be substantial.
• Preventative Strategy: Monitor filament hours if your detector software allows it. Operating the detector at the lowest emission current necessary for the required sensitivity will extend filament life. Avoid exposing the hot filament to sudden bursts of air or reactive gases.

3. Frequent Calibration Requirements

Accurate leak detection relies on precise calibration. Helium leak detector calibration is not a “set it and forget it” procedure.

• The Cost of Inaccuracy: If a detector drifts out of calibration, it may pass leaking parts (false negatives) or fail good parts (false positives). Both scenarios have serious financial consequences, ranging from product recalls to scrapped inventory.
• Calibration Leaks: Detectors require internal or external calibrated leaks (often a tiny, controlled permeation of helium through glass or quartz) to verify accuracy. These calibrated leaks deplete over time and must be recertified or replaced periodically, usually annually. The cost of a replacement calibrated leak and the certification process is a recurring hidden expense.
• Preventative Strategy: Understand the stability of your specific instrument. Some modern detectors have highly stable electronics that require less frequent calibration. Ensure that calibration leaks are stored at stable temperatures to maintain their stated leak rate for as long as possible.

4. Contamination and Cleaning

The internal surfaces of the mass spectrometer and the vacuum system must remain exceptionally clean.

• The Problem with “Dirty” Parts: Testing parts that have oil, grease, or moisture on them introduces these contaminants into the detector. This contamination can coat the internal surfaces, affecting sensitivity and increasing background noise.
• The Cost of Cleaning: When the system becomes contaminated, it must be taken offline, disassembled, and the internal components (like the ion source) must be meticulously cleaned or replaced. This requires specialized knowledge and results in significant downtime.
• Preventative Strategy: This is perhaps the most crucial area for cost avoidance. Never test dirty or wet parts. Implement strict pre-cleaning protocols for all test pieces. Use appropriate filtration (like cold traps or particulate filters) on the inlet of the leak detector to prevent contaminants from entering the vacuum system.

5. Consumables and Spare Parts

Beyond the major components, a helium leak detector requires a steady supply of consumables.

• O-rings and Seals: The numerous connections in the vacuum system rely on specialized O-rings (often Viton or copper). These must be replaced periodically to maintain vacuum integrity.
• Ion Source Rebuild Kits: Even with clean parts, the ion source eventually requires rebuilding with new repellers, extractors, and insulators.
• Preventative Strategy: Keep a well-stocked inventory of critical spare parts to minimize downtime when a replacement is needed. Purchasing high-quality consumables from reputable suppliers, while perhaps slightly more expensive upfront, often pays off in longer life and better performance.

Strategies for a Cost-Effective Operation

Achieving a cost-effective helium leak detector operation requires a proactive rather than reactive approach to maintenance.

Implementing a Predictive Maintenance Program

Instead of waiting for a component to fail, predictive maintenance relies on monitoring system parameters to anticipate failures before they occur.

• Monitor Vacuum Levels: Keep a log of the base pressure achievable by the system. A gradual increase in base pressure over time is an early warning sign of a developing leak, pump wear, or contamination.
• Track Filament Current/Voltage: Changes in the electrical characteristics of the filament can indicate impending failure.
• Record Background Helium Levels: A rising background level of helium in the system suggests contamination or a small leak in the detector itself.

Operator Training

The most common cause of premature failure in a helium leak detector is operator error.

• Proper Venting Procedures: Opening the system to the atmosphere while the high-vacuum pump is running at full speed or the filament is hot can cause catastrophic damage. Operators must be trained on the correct shutdown and venting sequences.
• Understanding Contamination: Operators must understand why testing dirty parts is detrimental and be empowered to reject parts that are not properly prepared.
• Recognizing Warning Signs: Train operators to recognize unusual noises from pumps or error messages on the display and to report them immediately.

Choosing the Right Equipment

Sometimes, the hidden costs are inherent in the design of the equipment. When purchasing a new detector, consider the total cost of ownership, not just the initial price.

Conclusion

A helium mass spectrometer leak detector is a vital tool, but its ongoing operational costs can be substantial if not carefully managed. By understanding the hidden costs associated with vacuum pumps, filaments, helium leak detector calibration, and contamination, facilities can implement proactive helium mass spectrometer leak detector maintenance strategies. Training operators, utilizing predictive maintenance techniques, and selecting the right equipment features are crucial steps toward achieving a truly cost-effective helium leak detector operation, ensuring both product quality and a healthy bottom line.

FAQs

Q1: How often should I calibrate my helium leak detector?

A1: The frequency of calibration depends on the specific detector model, the strictness of your quality standards, and how often the machine is used. As a general rule, a quick internal calibration check should be performed daily or at the beginning of each shift. A full, formal calibration using a certified, external leak standard is typically required annually or bi-annually to comply with quality management systems like ISO 9001.

Q2: My leak detector’s background signal is constantly high. What causes this, and how can I fix it?

A2: A high background signal usually indicates either contamination inside the system (from testing dirty parts or oil backstreaming) or a small “virtual leak” (trapped gas slowly escaping into the vacuum). First, ensure the test port is clean and free of O-ring grease. Run the detector on “standby” for an extended period to see if the background pumps away. If it persists, the internal ion source may need cleaning, or the vacuum pump oil may need changing.

Q3: Is it worth upgrading to a “dry” pumping system (using a scroll pump instead of a rotary vane pump)?

A3: It depends on your application. If you test parts that are generally clean and you want to eliminate the recurring cost and mess of oil changes, a dry pump is an excellent investment. They are also essential if you are working in a cleanroom environment where oil vapor is unacceptable. However, if you are testing very large volumes or parts that may have some moisture, a rugged rotary vane pump might still be the better, more durable choice.
