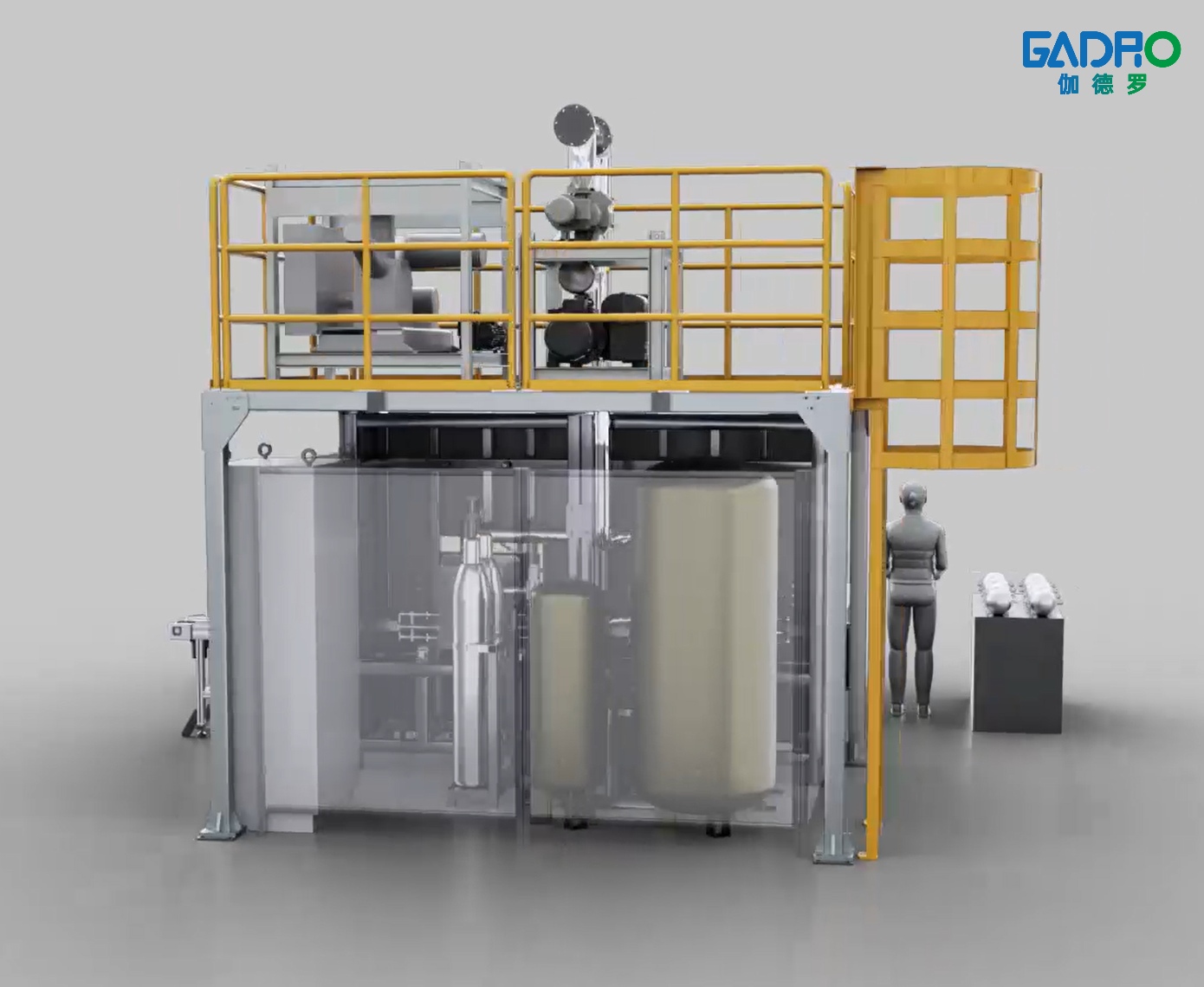

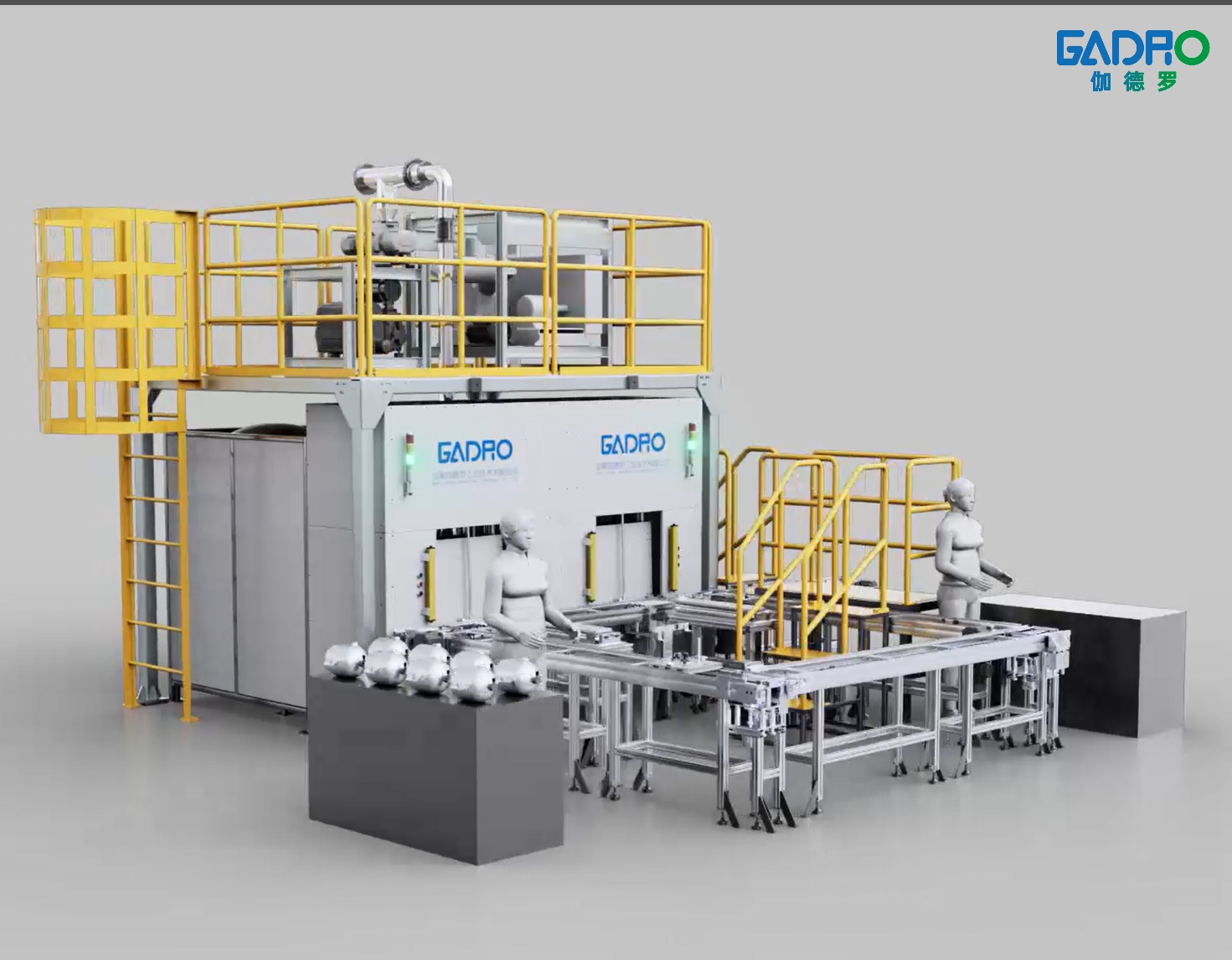

Chamber Helium Leak Tester Basic Information
| Quantity of vacuum chamber | 1~6 |
| Quantity of test item per chamber | 1~4 |
| Vacuum chamber volume | 1-10000L, Customized |
| Vacuum chamber type | Customized |
| Connectors, fixtures & pipelines | Customized |
| Testing pressure | ≤15Mpa |
| Detectable Leak Rate | 1×10-4 – 1×10–10 Pa.m3/s |
| Helium Recovery Efficiency | ≤98% |
| Vacuum chamber evacuation pressure | ≤20Pa |
It Features
- Non-Standard Customization: Fully customized solutions tailored to customer requirements.
- Intelligent Detection: Touchscreen operation, one‑button start, automatic detection and helium recovery.
- Comprehensive Safety Protection: Light curtain protection, built‑in safety switches, electrical interlocks, multi‑level password control, encrypted data storage.
- Remote Function Modules: Support remote control, remote maintenance, and AR‑assisted remote operation.
- Altitude Calibration: Calibration available for high-altitude applications.
- Smart Manufacturing Integration: Equipped with interfaces for connecting to enterprise management or smart factory systems.
- OEE Performance Management: Optional OEE equipment efficiency monitoring.
