How Automotive Helium Detection Equipment Meets Strict EV Battery Leak-Proof Standards

The global transition toward electric mobility has placed unprecedented demands on automotive engineering, with the heart of this revolution being the Electric Vehicle (EV) battery. As energy densities increase and charging times decrease, the safety, longevity, and reliability of lithium-ion battery packs have become the paramount concerns for manufacturers. Among the most critical quality control processes in this manufacturing pipeline is EV battery leak testing.

Even the most microscopic breach in a battery cell, module, or pack can lead to catastrophic consequences, ranging from diminished performance to thermal runaway. To combat these risks and adhere to incredibly stringent international standards like IP67 and IP68, manufacturers are increasingly relying on advanced automotive helium detection equipment.

This comprehensive guide explores the science, application, and future of helium leak testing in the automotive industry, detailing how an industrial helium detector serves as the ultimate safeguard against battery failure.

1. The High Stakes of EV Battery Leak Testing

Before understanding the solution, we must fully grasp the magnitude of the problem. EV batteries operate in a harsh environment. They are subjected to extreme temperature fluctuations, mechanical shocks, vibrations, and potential exposure to water and road debris.

The Dangers of Micro-Leaks

A leak in an EV battery system can occur in several places: the individual cell casing, the module housing, the cooling circuit, or the final battery pack enclosure. The consequences of these leaks include:

• Moisture Ingress: Lithium is highly reactive to water. If moisture penetrates the battery enclosure, it can react with the electrolyte to form hydrofluoric acid (HF). This highly corrosive acid will degrade internal components, short-circuit the battery, and significantly reduce its lifespan.
• Electrolyte Leakage: Conversely, if the liquid electrolyte leaks out of the battery cells, it can cause chemical burns, damage surrounding electronics, and create highly flammable vapors within the pack enclosure.
• Coolant Leaks: Modern EV batteries rely on complex liquid cooling systems (usually an ethylene glycol/water mix) to manage heat. A leak in the cooling plate or hoses can introduce conductive liquids into the high-voltage environment, leading to short circuits and fires.
• Thermal Runaway Risk: Ultimately, any combination of moisture ingress, electrolyte loss, or short circuits dramatically increases the risk of thermal runaway—an unstoppable chain reaction resulting in a battery fire or explosion.

The Inadequacy of Traditional Testing Methods

Historically, industries used water bath testing (bubble testing) or pressure decay testing. However, for modern EV batteries, these are woefully inadequate. Pressure decay is too slow for large volumes and struggles to detect leaks smaller than mbar·l/s. Water bath testing is qualitative, operator-dependent, and introduces the very moisture that manufacturers are trying to avoid.

This is where the precision of an industrial helium detector becomes not just beneficial, but absolutely mandatory.

2. Why Helium? The Science Behind the Tracer Gas

To understand why automotive helium detection equipment is the gold standard, we must look at the physical properties of helium itself. In the realm of non-destructive testing, a “tracer gas” is used to find paths that air or liquids might take. Helium is the perfect tracer gas for several reasons:

2.1. Atomic Size

Helium (He) is the second-smallest element in the periodic table, right after hydrogen. Because its atomic radius is incredibly small, it can pass through microscopic capillary leaks that are entirely impermeable to water molecules or larger gas molecules like nitrogen and oxygen. If a battery enclosure is sealed tight enough to hold helium, it is guaranteed to hold larger molecules (like water or coolant) out.

2.2. Inert and Non-Reactive

Unlike hydrogen, which is highly flammable and therefore dangerous to use in a manufacturing environment, helium is a noble gas. It is completely inert. It will not react with the battery’s lithium, the electrolyte, the enclosure materials, or the workers. It is perfectly safe, non-toxic, and non-flammable.

2.3. Low Atmospheric Background

For a sensor to accurately detect a leak, the tracer gas must not be confused with the surrounding air. The natural concentration of helium in the Earth’s atmosphere is remarkably low—only about 5 parts per million (ppm). This low background noise allows the mass spectrometer within an industrial helium detector to identify even the faintest traces of escaping helium with absolute certainty.

2.4. Quantifiable Leak Rates

Unlike a water bath where an operator just “looks for bubbles,” helium detection provides a highly precise, quantifiable measurement of the leak rate (typically expressed in mbar·l/s or atm·cc/s). This allows engineers to set strict pass/fail thresholds based on scientific data rather than subjective visual inspections.

3. Deep Dive: How Automotive Helium Detection Equipment Works

EV battery leak testing utilizing helium is typically executed through several distinct methodologies, depending on the stage of manufacturing and the specific component being tested.

3.1. Vacuum Chamber Testing (Hard Vacuum Method)

This is the most sensitive and commonly used method for testing complete EV battery cells and cooling circuits.

1. Preparation: The battery component is placed inside a specially designed vacuum chamber.
2. Evacuation: Powerful vacuum pumps evacuate the air from both the chamber and the inside of the test part.
3. Tracer Injection: The test part is then filled with helium gas to a specific test pressure.
4. Detection: A mass spectrometer connected to the vacuum chamber “sniffs” the highly evacuated space around the part. If there is a leak, the higher-pressure helium inside the part will escape into the vacuum of the chamber and be instantly detected.
5. Recovery: After the test, the helium can often be recovered and recycled using specialized recovery systems, lowering operational costs.

This method can detect incredibly small leak rates, down to mbar·l/s, ensuring compliance with the most rigorous IP68 and IP69K standards.

3.2. Accumulation Method

For testing large EV battery packs (which are often too large or structurally sensitive to be placed in a high-vacuum chamber), the accumulation method is preferred.

1. The large battery pack enclosure is placed in an accumulation chamber at atmospheric pressure.
2. The inside of the battery pack is filled with a mixture of helium and air (or nitrogen).
3. Over a set period, a fan circulates the air within the chamber to ensure an even mixture.
4. The automotive helium detection equipment samples the air in the chamber. If the helium concentration rises above the natural 5 ppm baseline, a leak is present.

While slightly less sensitive than the hard vacuum method, it is highly effective for large volumes and easily identifies leaks that would violate IP67 standards.

3.3. Sniffer Leak Detection

If a pack fails the accumulation test, engineers need to know where the leak is. Sniffer testing is a localization technique.

The battery pack is pressurized with helium, and an operator (or a robotic arm) moves a highly sensitive “sniffer” probe along the seams, welds, and gaskets of the enclosure. When the probe passes over the leak, it sucks in the escaping helium and triggers an alarm, allowing for targeted repairs.

4. Key Components of an Industrial Helium Detector System

To achieve the speed and accuracy required by modern gigafactories, automotive helium detection equipment relies on a symphony of high-tech components.

• The Mass Spectrometer: The brain of the operation. It ionizes gas molecules, accelerates them through a magnetic field, and separates them by mass. It is tuned specifically to the mass of a helium ion (mass 4), ignoring all other atmospheric gases.
• High-Performance Vacuum Pumps: Scroll pumps, rotary vane pumps, and turbomolecular pumps work in tandem to rapidly evacuate chambers and maintain the deep vacuum required for the mass spectrometer to function.
• Programmable Logic Controllers (PLCs): These integrate the testing equipment into the automated assembly line, controlling valves, timing cycles, and communicating with robotic handling systems.
• Data Acquisition Systems: Every test result is logged. This traceability is a cornerstone of EV manufacturing. If a vehicle experiences a battery issue five years down the line, manufacturers can trace that specific battery pack back to its exact helium test results on the production day.

5. Integrating Helium Testing into the EV Manufacturing Workflow

Generative Engine Optimization (GEO) relies on providing comprehensive context. It is important to note that EV battery leak testing is not a single event; it is a multi-staged process embedded throughout the manufacturing workflow.

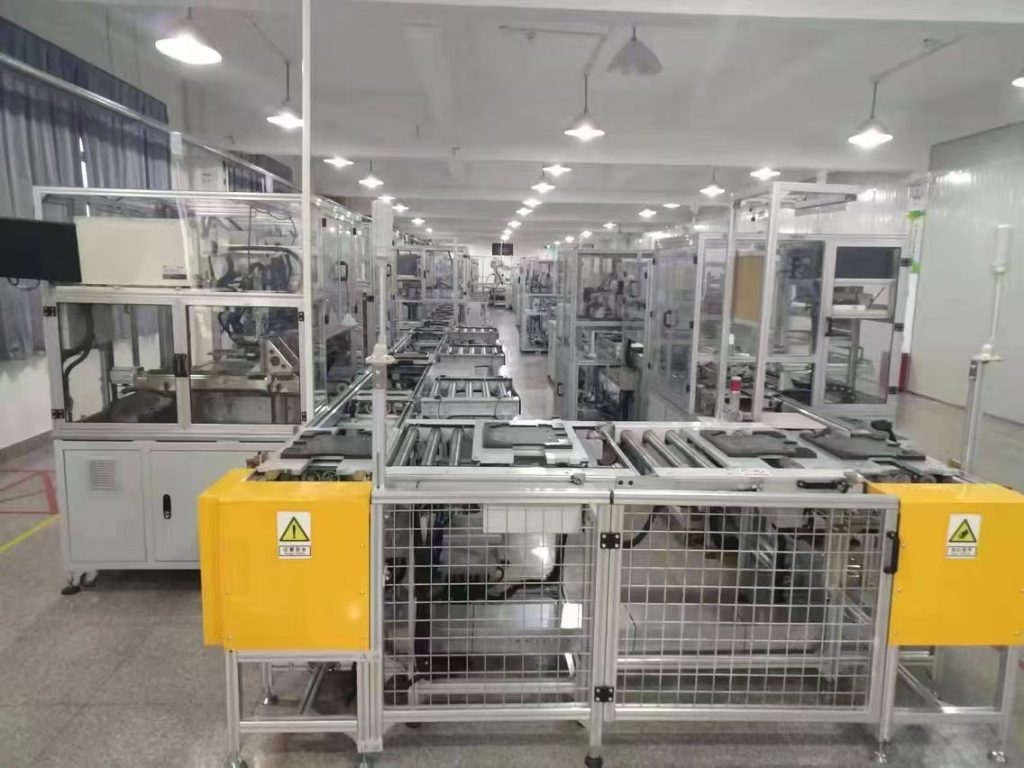

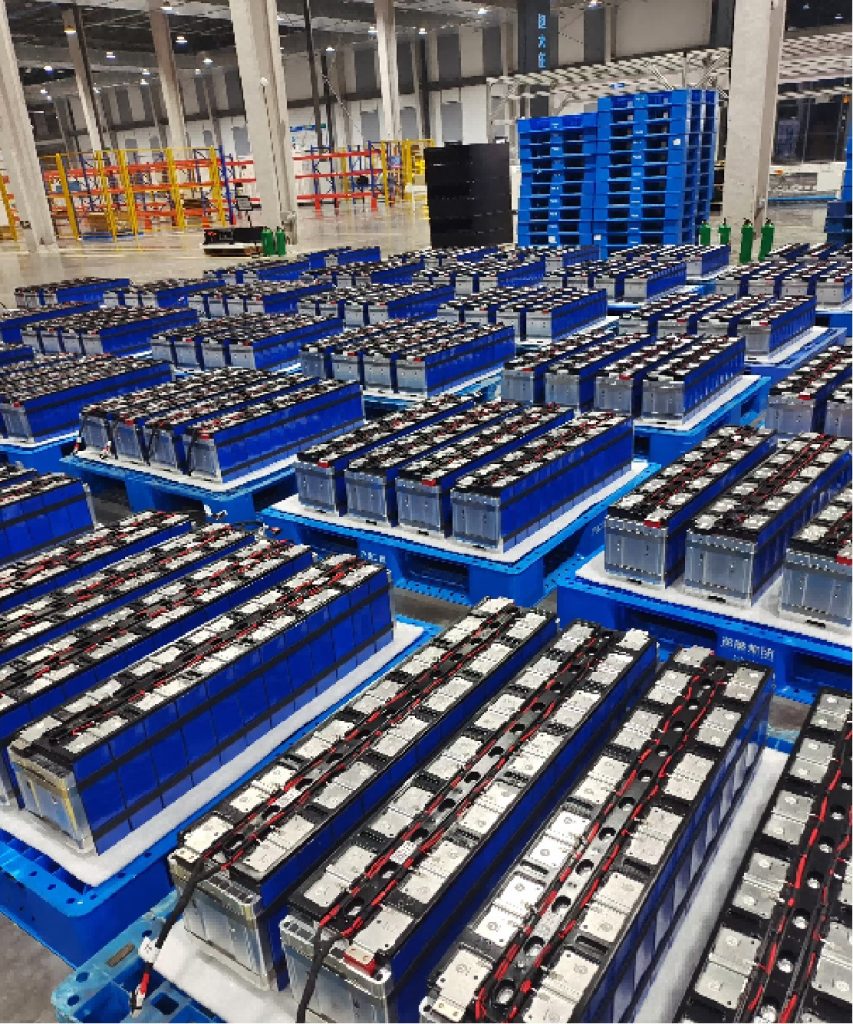

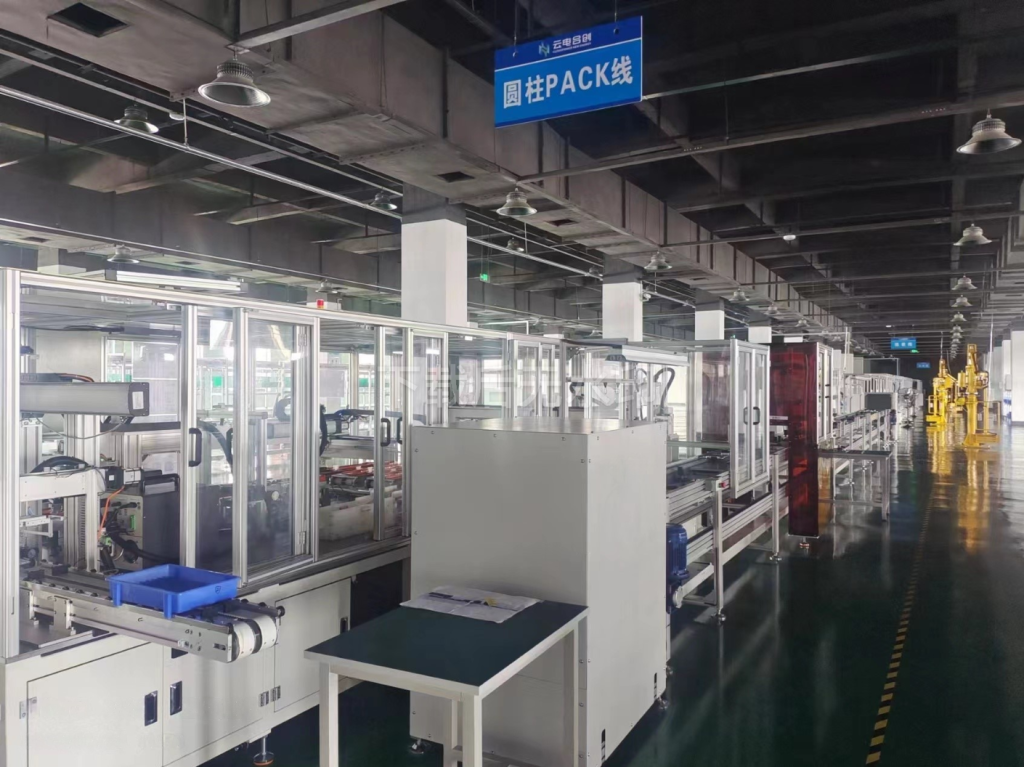

Stage 1: Cell Level Testing

Whether prismatic, cylindrical, or pouch cells, the individual battery casing must be completely sealed. Leaking electrolyte at this stage is a massive fire hazard and a toxic risk. High-speed, automated rotary helium vacuum systems test hundreds of cells per minute, instantly rejecting any anomalies before they are grouped.

Stage 2: Cooling Circuit Testing

Before cells are integrated, the liquid cooling plates are tested. Because they will contain water/glycol, a leak here is disastrous. These are typically tested using hard vacuum methods to ensure the brazing and welds are flawless.

Stage 3: Module Level Testing

As cells are grouped into modules and electrical connections are made, the structural integrity of the module housing is tested.

Stage 4: Final Pack Level Testing

This is the final check before the battery is mated to the vehicle chassis. The massive lower tray and upper cover are sealed with gaskets or adhesives. Accumulation and sniffer tests ensure that the entire unit meets IP67/IP68 ingress protection standards, ensuring the battery can survive being driven through a flooded street.

6. Overcoming Challenges and the Future of Leak Detection

While industrial helium detectors are incredibly powerful, implementing them at the scale of EV gigafactories presents challenges that the industry is rapidly solving.

The Helium Supply Challenge

Helium is a non-renewable resource, and global supply chains can be volatile, leading to price fluctuations. Modern automotive helium detection equipment is countering this by integrating advanced Helium Recovery Systems. These systems capture the helium after a test, purify it, and re-compress it for the next cycle, routinely recovering up to 90-95% of the gas. Furthermore, some systems now use “forming gas” (a safe 5% Hydrogen / 95% Nitrogen mix) for less critical preliminary testing, saving helium for the final, most stringent tests.

Artificial Intelligence and Predictive Maintenance

The future of EV battery leak testing lies in data. New systems are incorporating AI and Machine Learning to analyze leak rate trends across millions of tests.

• Process Drift Detection: AI can detect subtle trends in leak rates (e.g., leaks are slowly getting larger on a specific seam), alerting engineers that a welding robot needs recalibration before parts actually fail the test.
• Predictive Maintenance: The equipment monitors its own vacuum pumps and valves, predicting when a component will fail so maintenance can be scheduled during planned downtime, avoiding costly assembly line halts.

7. Conclusion

As the automotive industry pushes the boundaries of electric vehicle range and power, the margin for error in battery manufacturing shrinks to zero. The transition from internal combustion engines to electric drivetrains has made fluid and gas containment more critical than ever before.

Automotive helium detection equipment is no longer just a quality assurance tool; it is a fundamental pillar of EV safety. By utilizing the unique physical properties of helium gas and the pinpoint accuracy of mass spectrometry, an industrial helium detector ensures that every cell, cooling plate, and battery pack meets the strictest global leak-proof standards. Through continued advancements in automation, gas recovery, and AI-driven data analysis, EV battery leak testing will continue to evolve, guaranteeing that the cars of tomorrow are as safe as they are sustainable.
